Upgrade to an Automatic Fly Ash Brick Making Machine for faster, cost-effective, and eco-conscious brick manufacturing.
✅ High Output | ✅ Eco-Friendly | ✅ Low Maintenance
Machinery Detail

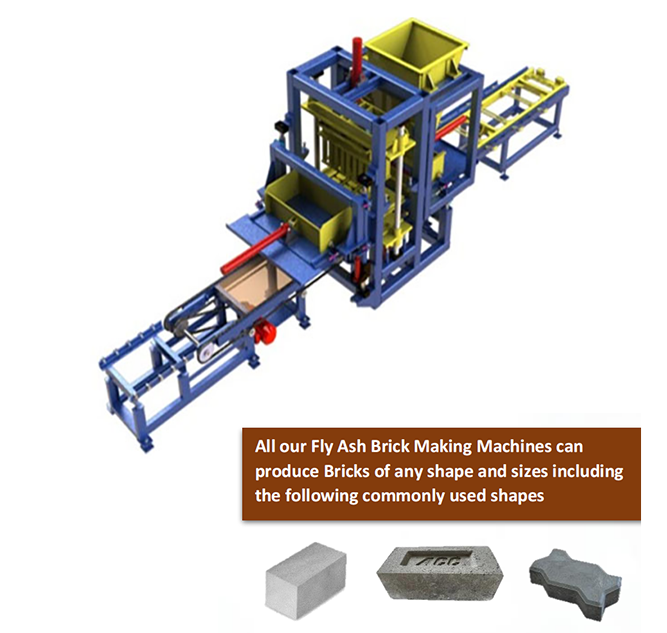

Automatic Fly Ash Brick Making Machine (AFM4800)
An Automatic Fly Ash Brick Making Machine is a state-of-the-art solution for large-scale brick production. Designed for maximum efficiency, it automates the process, reducing labor costs while ensuring uniform and high-quality bricks. Using fly ash, cement, and other materials, this eco-friendly machine supports sustainable construction. Its advanced automation increases productivity, minimizes material wastage, and enhances durability
Specification
| Model Name | AFM4800 |
|---|---|
| Brick per Stroke | 4 Bricks or 2/3 Paver |
| Power | 11.5 HP / 3 Phase |
| Cycle | 12-15 Sec |
| Capacity | 7000-8000k Brick/day |
| Pallet Size | 600x300x18/19 mm |
| Control Panel | PLC with Touch Screen (HMI) |
| Pallet | Automatic / Manual |
| Raw Material | Fly ash, River Sand, Stone Dust, Stone Chips, Cement OPC 53, Water |
Specification
- Model Name - AFM4800
- Brick per stoke - 4 Bricks or 2/3 paver
- Power - 11.5 HP / 3 phase.
- Cycle - 18-20 Sec.
- Capacity - 7000-8000k Brick/day
- Pallet Size- 600x300x18/19 mm
- Pallet Feeding - Automatic / Manual
- Control Panel - PLC with Touch Screen(HMI)
PRODUCTION CAPACITY WITH POSSIBLE SIZE
| SI NO | Product | Image & Sizes | PCS/Mould | PCS/ Hr | PCS/ Shift |
|---|---|---|---|---|---|
| 1 | Fly Ash Brick |
 230x110x75 mm
|
4 | 880 | 7040 |
| 2 | Solid Brick |
 190x90x90 mm
|
5 | 1100 | 8800 |
| 3 | Zig Zag Paver Block |
 225x112x80 mm
|
2 | 440 | 3520 |
| 4 | I-Shape Paver Block |
 200x165x60 mm
|
2 | 440 | 3520 |
| 5 | Hollow Block |
 390x190x190 mm
|
1 | 220 | 1760 |
| 6 | Solid Concrete Block |
 400x200x200 mm
|
1 | 220 | 1760 |
