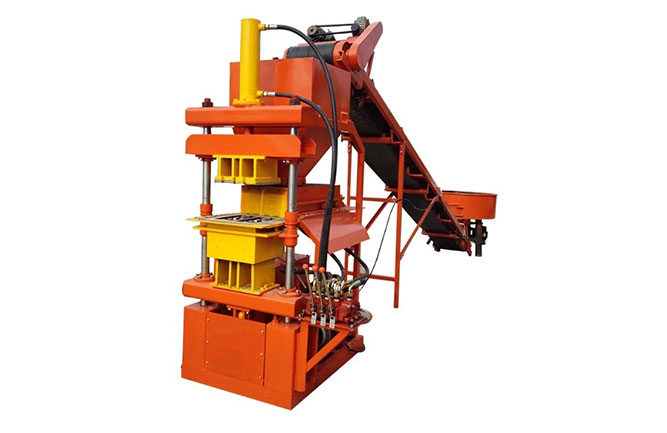

Automatic Solid block making machine(ASM)

An Automatic Solid Block Making Machine is a cutting-edge solution for producing durable and high-quality solid blocks with minimal manual effort. Designed for efficiency, this machine automates the entire process, ensuring uniform block size, reduced material wastage, and enhanced productivity. Ideal for large-scale construction projects, it delivers cost-effective and eco-friendly solutions.

Upgrade to an Automatic Solid Block Making Machine for faster, reliable, and sustainable block production.

✅ High Output | ✅ Eco-Friendly | ✅ Low Maintenance

Specification

Model Name	ASM
Brick per stoke	6 Bricks or 4 pavers
Power	21.5 HP / 3 Phase
Cycle:	18-20 Sec
Capacity	2880 Brick/day
Pallet Size	800x600x18/19 mm
Control Panel	PLC with Touch Screen (HMI)
Pallet Feeding	Automatic / Manual

Specification

Model Name - AFM4800
Brick per stoke - 4 Bricks or 2/3 Paver
Power - 11.5 HP / 3 phase.
Cycle - 18-20 Sec.
Capacity - 7000-8000k Brick/day
Pallet Size- 600x300x18/19 mm
Pallet Feeding - Automatic / Manual
Control Panel - PLC with Touch Screen(HMI)

PRODUCTION CAPACITY WITH POSSIBLE SIZE

SI NO	Product	Image & Sizes	PCS/Mould	PCS/ Hr	PCS/ Shift
1	Fly Ash Brick	230x110x75 mm	4	880	7040
2	Solid Brick	190x90x90 mm	5	1100	8800
3	Zig Zag Paver Block	225x112x80 mm	2	440	3520
4	I-Shape Paver Block	200x165x60 mm	2	440	3520
5	Hollow Block	390x190x190 mm	1	220	1760
6	Solid Concrete Block	400x200x200 mm	1	220	1760

Machinery Detail

Automatic Solid block making machine(ASM)

Specification

Specification

PRODUCTION CAPACITY WITH POSSIBLE SIZE

Delivering Results with Solid Dependability
